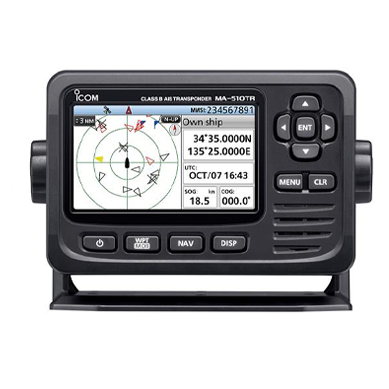

iCOM MA-510TR AIS Transponder

Benefits of AIS (Automatic Identification System)

An AIS transponder on your boat automatically receives information broadcast by other AIS-equipped vessel’s and base stations, all while your own vessel’s static and dynamic information is being transmitted. Using with an AIS transponder, you can find AIS mounted small boats and buoys that are difficult to be detected with a marine radar. The MA-510TR can receive both Class A and B AIS signals and increases your safety at sea.

4.3-inch Color TFT LCD

The wide viewing, high resolution 4.3-inch color TFT display clearly shows your and other vessels’ positions.
Potentially dangerous vessels are shown in red and ships registered as your friends are shown in yellow. The day-mode display is readable in direct sunlight, and the night-mode display ensures good readability in the dark for further convenience.

AIS Target List and Details

The ‘Target’ list screen shows all detected AIS equipped vessels and targets. The ‘Danger’ list screen shows a list of vessels that are within six nautical miles of Closest Point of Approach (CPA) and sixty minutes of Time to Closest Point of Approach (TCPA) from your vessel. The ‘Friend’ list screen displays the detected AIS targets that you set as friends. When you want to see target details, select the target by the cursor keys and push [ENT] key.

Individual DSC Call

You can transmit an individual DSC Call by simply selecting an AIS target and the voice channel on the MA-510TR*.
* A compatible Icom VHF radio is required. The MA-510TR and a radio can be connected with the accessory cable. See the instruction manual of each for radio’s connecting instructions.

NMEA 2000™, NMEA 0183/-HS Connectivity

With the plug-and-play functionality of NMEA 2000™, the MA-510TR can connect to a NMEA 2000™ network (an external plotter, marine radar and VHF radio). Using NMEA 0183/-HS connectivity, the transponder can connect to a transceiver, plotter device, marine radar, external GPS receiver, or switch button.

Collision Alarm Function

When a vessel comes into the CPA or TCPA range, the vessel’s icon blinks on the plotter display and a beep sound is heard. When connected to external audio equipment installed on the chart table or fly bridge, the collision alarm function will alert you, even when you are away from the AIS transponder.

Supplied GPS Antenna

The GPS receiver with SBAS function is integrated in the MA-510TR. Position information can be simply received with connection to the supplied GPS antenna with 10 m, 32.8 ft cable.

Silent Mode for Security and Privacy

Silent mode switches off the AIS transmitter and allows you to temporarily stop transmitting your vessel’s position information. This function is useful when you do not want to reveal your fishing spots to other vessels. You can receive other vessel’s AIS reports also while the silent mode is ON.

Other Features

• Compatible with both 12 V and 24 V power sources
• Multi-lingual user interface (English, French, Indonesian, Spanish and Vietnamese)
• Anchor watch function sounds an alarm when your vessel is at anchor but has drifted
• IPX7 waterproof protection (up to 1 m depth of water for 30 minutes; except connectors)

SKU: MA-510TR
